Collect and View Network Reports

This topic describes how to enable and view network reports for environments created with Replicated Compatibility Matrix (CMX).

About Network Reports​

CMX network reporting helps you understand your application's network activity. To provide flexibility in testing, you can enable network reporting to capture all network activity, whether the network policy is set to open or airgap.

Even when the network policy is set to airgap and network egress is blocked, all connection attempts and DNS queries are still captured in the report. This helps you identify unexpected network calls before deploying to an air-gapped environment.

For more information about working with CMX networks, see Create Air-Gapped Environments (Beta) and Create Environments on the Same Network in Create and Manage Environments

Types of Network Reports​

The following tables describes the CMX network report types:

Report TypeDescriptionReport Contents
Running ReportSee all network events captured in near real-time
  • Timestamp (with microseconds)
  • Source IP, Source Port, Source PID
  • Source Command, Source Pod
  • Destination IP, Destination Port
  • DNS Query Name
  • Protocol
  • Likely Service
Report SummaryAggregated analysis of captured network events
  • Total Events Count
  • Time Range (start/end)
  • Report Creation Date
  • Domain Names Requested (Domain, Count)
  • Destination IP Addresses Connected To (IP, Port, Count)
  • Source Details (expandable): Source IP, Service, Command, Pod

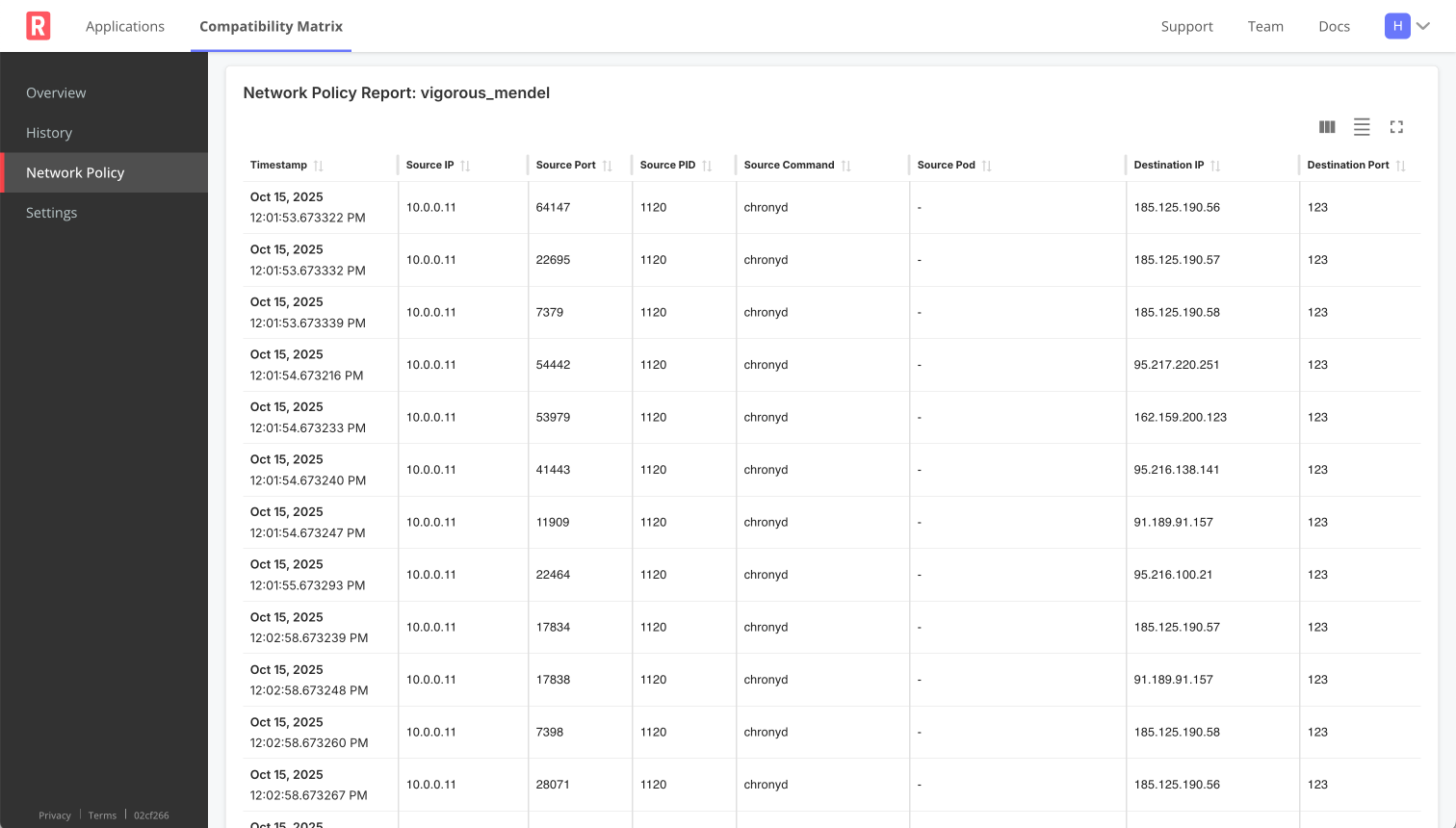

The following shows an example of a running report:

Network Policy page with running report, showing all network events captured

View a larger version of this image

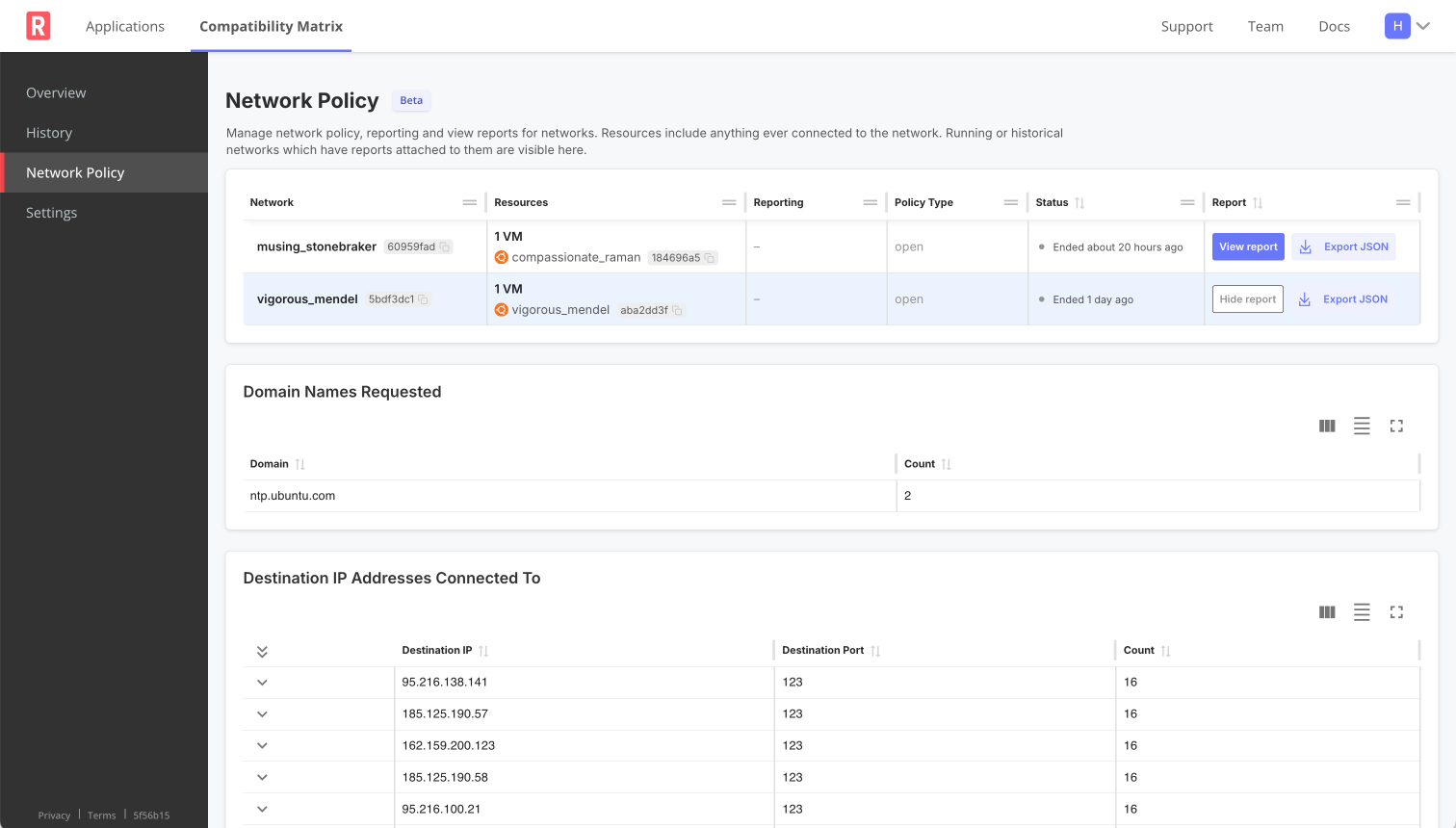

The following shows an example of a report summary:

Network Policy page with report summary, showing domain names and destination IPs

View a larger version of this image

Enable Network Reporting​

Networking reporting is not enabled by default. To collect reports, you can enable reporting in the Vendor Portal or with the CLI.

Vendor Portal​

To set the network policy and collect and view reports in the Vendor Portal:

  1. Go to Compatibility Matrix > Network Policy.

  2. To collect a network report, toggle on the switch under Reporting.

  3. (Optional) Toggle from open to airgap under Policy Type to block all network egress.

CLI​

To collect and view a network report from the CLI:

  1. Turn on network reporting:

    replicated network update NETWORK_ID --collect-report

    Where NETWORK_ID is the ID of the network. You can get the network ID by running replicated network ls.

  2. Confirm that Has report is on for the network:

    replicated network ls

    Example output:

    ID          NAME                   STATUS          CREATED                    EXPIRES                    POLICY        HAS REPORT
    a1b2c3d4    example_network_1      running         2025-01-28 16:04 PST       2025-01-28 18:06 PST       open          off
    e5f6g7h8    example_network_2      running         2025-01-28 12:10 PST       2025-01-28 20:11 PST       airgap        on

  3. (Optional) Change the network policy to airgap to block all network egress.

View Network Reports​

After you Enable Network Reporting for a network, you can view network reports.

Vendor Portal​

To view network reports in the Vendor Portal:

  1. Go to Compatibility Matrix > Network Policy.

  2. Where available, click "View report" under Report to see the reporting table. You can also click "Export JSON" to download the raw report data.

    note

    When reporting is on for an active network, all network events display in a Running Report. When the network is terminated, the Report Summary is automatically generated.

CLI​

To view network reports from the CLI:

  1. Get the network ID:

    replicated network ls

  2. View the network report:

    See network event summary that aggregates all unique domains and destination IPs, with connection counts and other details (JSON format):

    replicated network report NETWORK_ID --summary

    See all network events (JSON format):

    replicated network report NETWORK_ID

    Watch as new network events occur (JSON format):

    replicated network report NETWORK_ID --watch
    note

    Network events are batched for display in the report, so appear with a short delay.
